Fluke | Digital Multimeter

Fluke 287 True-RMS Electronics Logging Multimeter

The Fluke 287 True-RMS Electronics Logging Multimeter is a high-performance, True-RMS digital multimeter designed for professionals in electronics, plant automation, power distribution, and electro-mechanical equipment. It offers advanced logging and graphing capabilities, allowing users to document and analyze design performance without the need for a PC. With a large 50,000-count display and optional wireless connectivity, it provides enhanced visibility and remote monitoring capabilities..

  • Detail
  • Special Features
  • Specification

The Fluke 287 is engineered to meet the demanding needs of professionals who require reliable and precise measurements in challenging environments. Its TrendCapture™ feature allows users to graphically display logged data sessions to quickly identify anomalies. The True-RMS capability ensures accurate readings even for distorted waveforms, making it ideal for troubleshooting complex electrical systems. The large display provides clear visibility, while the optional wireless connectivity enhances remote monitoring capabilities. With its extensive logging function and peak capture feature, the Fluke 287 is a versatile tool for comprehensive diagnostics and analysis.

  • TrendCapture™: Graphically displays logged data sessions to quickly determine whether anomalies may have occurred.

  • True-RMS Measurement: Ensures accurate readings for non-linear loads.

  • Logging Function: Allows for unattended monitoring of signals over time, with memory to store up to 10,000 readings.

  • Peak Capture: Records transients as fast as 250 µs.

  • Large Display: 50,000 count, 1/4 VGA dot matrix display with white backlight.

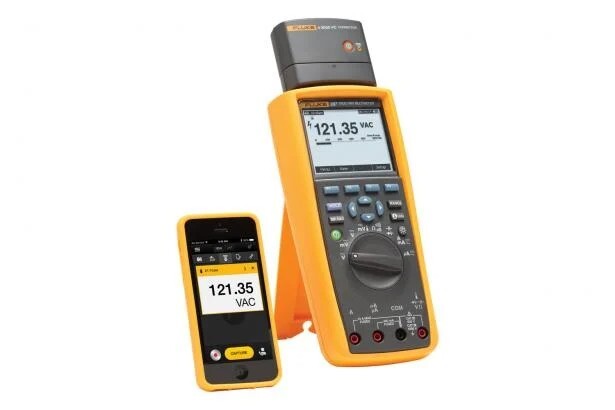

  • Wireless Connectivity: Compatible with Fluke Connect mobile app via the optional ir3000 FC infrared connector.

  • Multiple On-Screen Displays: Simultaneously displays multiple sets of measurement information.

  • Time-Stamping: Real-time clock for automatic time stamping of saved readings.

Measurement Range / Resolution Accuracy
DC Voltage 50.000 mV to 1000.0 V ±(0.025% + 1)
AC Voltage 50.000 mV to 1000.0 V ±(0.4% + 1)
DC Current 500.00 µA to 10.000 A ±(0.05% + 2)
AC Current 500.00 µA to 10.000 A ±(0.6% + 2)
Resistance 500.00 Ω to 500.0 MΩ ±(0.05% + 1)
Capacitance 1.000 nF to 100 mF ±(1.0% + 2)
Frequency 99.999 Hz to 999.99 kHz ±(0.005% + 1)
Temperature -200.0°C to 1350.0°C ±(1.0% + 10)
Peak Capture 250 µs -
Logging Memory Up to 10,000 readings -
Display 50,000 count, 1/4 VGA dot matrix -
Battery Life 100 hours minimum, 200 hours in logging mode -
Wireless Connectivity Optional via ir3000 FC infrared connector -
Size (H x W x L) 22.2 x 10.2 x 6 cm -
Weight 870.9 g -
Safety Rating CAT III 1000 V, CAT IV 600 V -
